Complete Guide to Installing the CH341/CH340 Driver for Arduino UNO SMD

Updated: Sep 24

Understanding the CH341/CH340 Driver

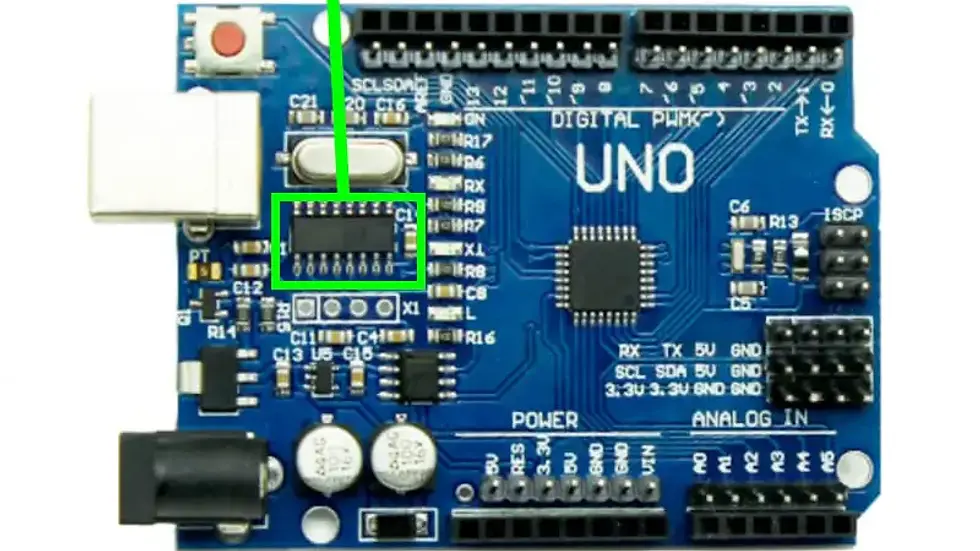

UNO SMD CH340 DRIVER IC
UNO SMD CH340 DRIVER IC

The CH341/CH340 is a USB-to-serial converter chip used in many low-cost Arduino boards, especially the Arduino UNO SMD (Surface Mount Device) version. Without this driver, your computer won’t recognize the Arduino board.


Requirements


Before you begin, ensure you have the following:


  • Arduino UNO SMD board

  • Windows laptop or desktop

  • Arduino IDE installed

  • Internet connection


Complete Guide to Installing the CH341/CH340 Driver for Arduino UNO SMD

Step-by-Step Driver Installation


Step 1: Download the CH341/CH340 Driver


  1. Go to our official website: https://www.kiwistronics.com/resourses or use the Direct download link below.



  2. Find and click on the “CH340/CH341 Driver – Windows” download link.

  3. A ZIP file will be downloaded to your Downloads folder.


Step 2: Extract the ZIP File


  • Navigate to your Downloads folder.

  • Right-click the downloaded ZIP file.

  • Select “Extract All…” and extract it to a folder.


Step 3: Run the Setup File

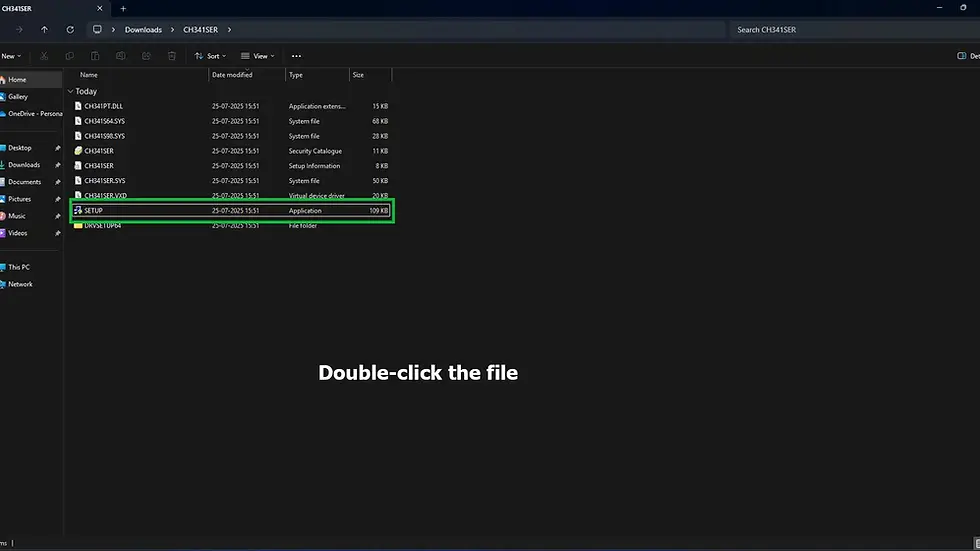

CH340 DRIVER INSTALLATION (Double click the setup.exe file)
CH340 DRIVER INSTALLATION (Double click the setup.exe file)

  • Open the extracted folder.

  • Look for the file named SETUP.EXE or CH341SER.EXE.

  • Double-click the file to run the installer.

  • A setup window will appear – click the “Install” button.


  • Wait a few seconds; a popup will show “Driver installed successfully.”


Step 4: Connect Your Arduino UNO SMD


  • Plug your Arduino UNO SMD board into the USB port.

  • Wait for Windows to detect the board.

  • If installed correctly, Windows will assign a COM port to it.


Step 5: Check in Arduino IDE


  1. Open the Arduino IDE.

  2. Go to the menu: Tools → Port.

  3. You will now see a COM port (e.g., COM3, COM4).

  4. Click on it to select the correct port for uploading code.


That’s it! Your Arduino UNO SMD is now ready to use!


Troubleshooting Tips


If you encounter issues, try the following:


  • If no COM port is showing, try unplugging and plugging the USB again.

  • Use a good quality USB cable (some power-only cables won’t work).

  • Restart your computer after driver installation.


Download Link


CH341/CH340 Windows Driver: https://www.kiwistronics.com/resourses


or use the Direct Download link below.



Installing the CH341/CH340 driver is a one-time setup that ensures your Arduino UNO SMD board communicates smoothly with your PC. This simple process solves issues like "port not showing," "board not detected," and upload error problems.


If you found this guide helpful, don’t forget to share it with your friends and check out other beginner tutorials on our site!


Feel free to comment below or reach out to us at info@kiwistronics.com or Chat us at 8124422676 — we’re happy to help!


Thanks for reading!


– Team Kiwistronics ❤️www.kiwistronics.com
